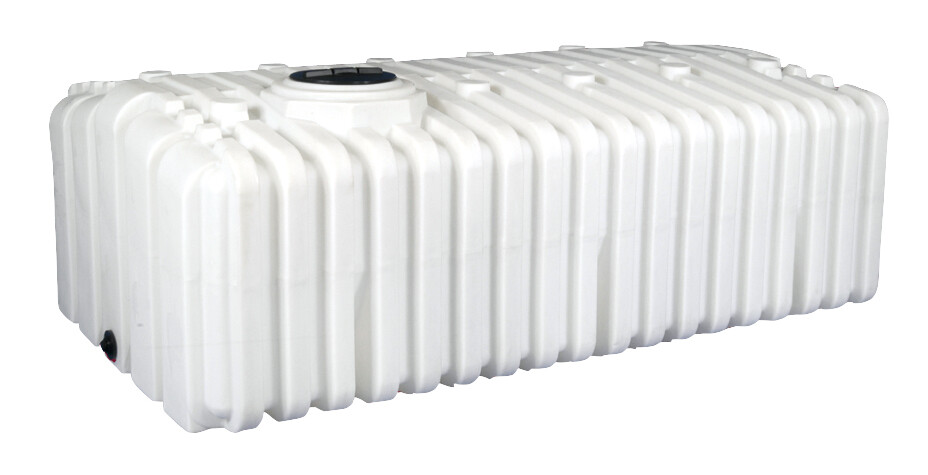

Specialty Water Hauling Tanks
Horizontal box and low profile water hauling tanks designed for truck and trailer mounting. Rectangular and low-profile shapes maximize capacity while maintaining a low center of gravity for safe transport.
Rotationally molded polyethylene
1,250 to 2,400 gallons
Certifications
Key Features
- Horizontal box and low profile configurations
- Low center of gravity for safe transport
- Designed for truck and trailer mounting
- One-piece seamless rotational molding
- UV-resistant polyethylene construction
- Large fill openings for easy access
Applications
Specifications
| Capacity | Width | Height | Length | Fill Opening | Outlet |
|---|---|---|---|---|---|
| 2,400 gal | 90" | 53" | 150" | 16" | 2" |
| 1,250 gal | 81" | 38" | 130" | 16" | 2" |
| 1,275 gal | 84" | 36" | 126" | 16" | 2" |
| 1,500 gal | 81" | 44" | 130" | 16" | 2" |
| 1,600 gal | 84" | 42" | 126" | 16" | 2" |
