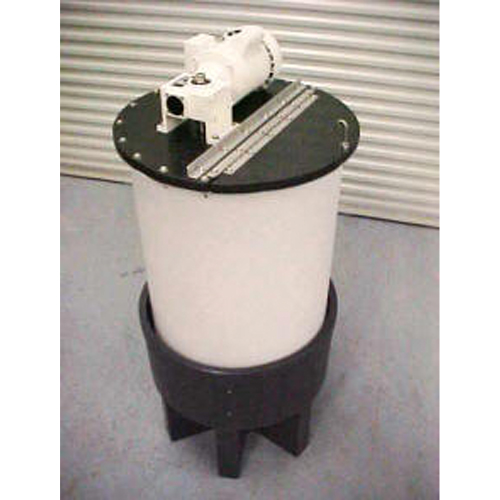

Open-Top Tanks
Open top plastic tanks for water and chemical storage, available in polyethylene and polypropylene. Features full access to the top of the vessel with optional hinged or flat covers, elevated stands, and mixer integration. Suitable for mixing, blending, and processing applications.
Polyethylene or polypropylene
5 to 2,000 gallons
Key Features
- Open top for complete access
- Hinged or flat top covers available
- Elevated stands available
- Mixer integration ready
- Optional cone or flat bottom
- Stainless steel wetted parts for chemical mixing
- FRP encased models available
Applications
Specifications
| Capacity | Diameter | Height |
|---|---|---|
| 5 gal | 11" | 13" |
| 10 gal | 15" | 17" |
| 15 gal | 15" | 19" |
| 30 gal | 18" | 29" |
| 55 gal | 30" | 18" |
| 55 gal | 22" | 36" |
| 75 gal | 30" | 24" |
| 100 gal | 30" | 36" |
| 125 gal | 42" | 24" |
| 195 gal | 32" | 73" |
| 200 gal | 31" | 65" |
| 250 gal | 42" | 46" |
| 350 gal | 42" | 60" |
| 500 gal | 52" | 64" |
| 750 gal | 62" | 58" |
| 1,000 gal | 66" | 72" |
| 1,500 gal | 73" | 84" |
| 2,000 gal | 80" | 86" |
