Category: Fiberglass Tanks

Fiberglass Plastic Tanks

Fiberglass Plastic Tanks

Raventank.com has an abundance information on our Fiberglass Tank Product Line… More Fiberglass Tank Information at http://www.raventank.com

Materials of construction include Vinyl ester, Isophthalic, Ortho and Vinyl Ester resins, ASTM Specification compliance and quality control is guided by API, AWWA; ASTM-3299, NFPA 22, FDA and NSF Specifications.

The following is a most informative site on the subject of Fiberglass Tanks,Link to Fiberglass tank data at Raventank.com

Fire Water Tanks

Fire Water Tanks

Fire marshals throughout the United States rely on these specifications for both uniformity and a professionally considered and engineered systems. Integration of NFPA specifications creates the optimal opportunity for Fire Departments to interface their pumper trucks and other equipment with fire system components provided by equipment vendors.

Fiberglass, Stainless Steel, Polyethylene and Bolted Carbon Steel, Providing a permanent Long Term Storage and Zero Maintenance…

  • Fiberglass to 100,000 gallons AWWA & NFPA
  • Polyethylene to 20,000 gallons
  • Bolted Steel to 3,000,000 gallons, AWWA & NFPA
  • Fiberglass and steel Underground to 40,000

Many counties in the US require to new construction to include fire water storage. The requirements vary, but the obvious purpose is to have on hand a reservoir of water to use in fighting fires.

Many of the houses that burn could be saved. The loss of Electricity means your electric pump will fail. This failure means you cannot extract water from your well or the community water system or cistern. It is up to your the home owner to ultimately be responsible for your family and homes survival. Water Storage and a gasoline powered pump, will give you access to your available water resources to fight a fire.

If you use a polyethylene fire water tank or tanks, they may be buried 1/2 their height below grade, it is essential that the be kept full of water. It is recommended that you keep the area around your tanks free and clear of brush. It is recommended that you test your gasoline fire pump once a month. Please consult your local fire department for suggestions as to how you can help your self successfully fire a fire.

If you are in a dry area, you should practice what to do in case of a fire. Consult your local fire department, be aware and follow their recommendations.

Fire Departments recognize your responsibility and desire to be your own first responder in a fire..

Store water for the day when the fire comes…

Call today, Fire Water Tank Pricing and assistance.

Submittals becomes part of the documentation you will submit to the Fire Marshall for permit approval.

Ask for the line item “NFPA Tank Submittal” to included in your purchase.

Fire Water Storage and Potable Water Tanks and Tank Repair…

Demolition and Replacement of fire water tanks.

Relining and repair of existing steel fire water tanks.

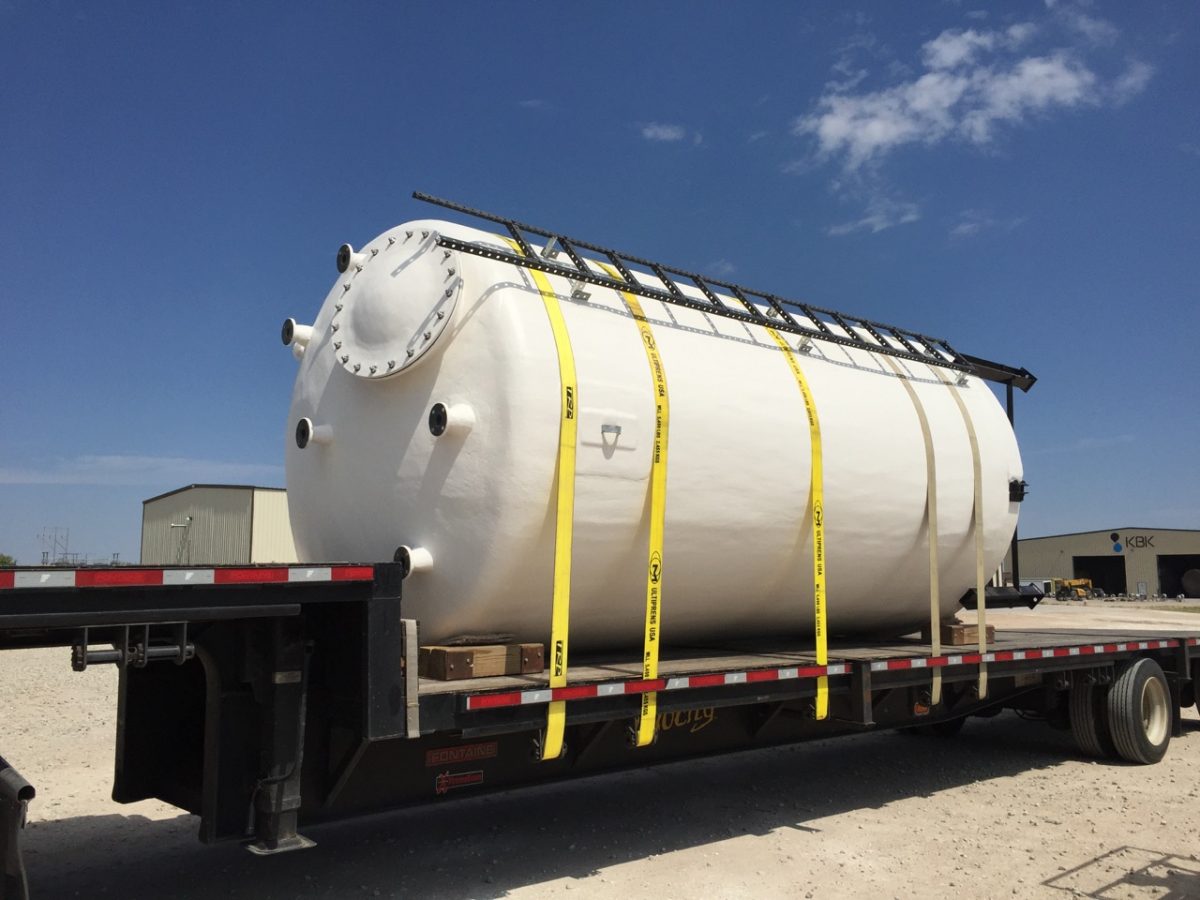

Fiberglass tanks to 100,000 gallons, one piece delivered to site.

Carbon steel site erected tanks, welded or bolted to 3,000,000 gallons

Polyethylene Tanks provide a Low Cost Solution To Fire Control  And Potable Water Backup Storage when the need is small.

Call today, Fire Water Tank Pricing and assistance.

Submittals becomes part of the documentation you will submit to the Fire Marshall for permit approval.

Ask for the line item “NFPA Tank Submittal” to included in your purchase.

Fire Water Storage and Potable Water Tanks and Tank Repair…

Demolition and Replacement of fire water tanks.

Relining and repair of existing steel fire water tanks.

Fiberglass tanks to 100,000 gallons, one piece delivered to site.

Carbon steel site erected tanks, welded or bolted to 3,000,000 gallons

Polyethylene Tanks provide a Low Cost Solution To Fire Control  And Potable Water Backup Storage when the need is small.

Fire Water delivery systems, trailer mounted with hoses and pumps, compressors and generators.

Raven Fiberglass Tanks

Raven Fiberglass Tanks

Plastic polyethylene & Fiberglass (FRP) NFPA Fire Water tanks & NSF 61 drinking water tanks and ASTM chemical tanks.

Fiberglass tanks are a time proven device that keeps cost and maintenance low. Our fiberglass fire water tanks provide large water storage volumes to 100,000 gallons.

Agricultural spray tanks, chemical and fertilizer storage tanks and Horizontal tanks with low center of gravity fit trucks and trailers.

Plastic Tank Styles and Specifications Polyethylene and Fiberglass

Click here for access to our Online Brochure, 144 Pages of Tank Data PDF

Underground Water And Chemical Tanks

Underground Fuel Frp

The tank size, fittings and accessories shall be as shown on the drawings. The fiberglass tank shall be provided by Tanksystems.Com of Houston –

The tank shall be tested and installed according to the Installation Manual and Operating Guidelines for Single-Wall and Double-Wall Fiberglass Underground Storage Tanks in effect at time of installation.

Part I: General

1.01 Quality Assurance

  1.  Acceptable Manufacturer: Tanksystems.com
  2.  Governing Standards, as applicable:
  3. Underwriters Laboratories (UL) Standard for Safety 1316, File MH 9061 for storage of flammable liquids. A UL label shall be attached to each tank.
  4. National Fire Protection Association (NFPA) Standards:

NFPA 30: Flammable and Combustible Liquids Code

NFPA 30A: Automotive and Marine Service Station Code

NFPA 31: Installation of Oil-Burning Equipment.

  1. City of New York Department of Buildings M.E.A., Division #161-89-M.
  2. Los Angeles Fire Department.

Part II: Products

2.01 Double-Wall Fiberglass Reinforced Plastic (FRP) Underground Storage Tanks

  1.  Loading Conditions – Tank shall meet the following design criteria:
  2. Internal Load – Tank certified to pass a maximum 5-psig air-pressure test with 5:1 safety factor. Contractor shall individually test tanks for leakage prior to installation.
  3. Vacuum Test – To verify structural integrity, every standard 10′-diameter tank and smaller shall be vacuum tested by the manufacturer at the factory to 11.5″ of mercury.
  4. Surface Loads – Tank shall withstand surface H-20 axle loads when properly installed according to manufacturer’s current Installation Manual and Operating Guidelines.
  5. External Hydrostatic Pressure – Tank shall be capable of being buried in ground with 7′ of  overburden over the top of the tank, the hole fully flooded and a safety factor of 5:1 against general buckling.
  6. Tank shall support accessory equipment – such as heating coils, drop tubes, submersible pumps and ladders –when installed according to tank manufacturer’s current Installation Manual and Operating Guidelines.
  7.  Product Storage
  8. Tank shall be capable of storing petroleum products with specific gravity up to 1.1.
  9. Tank shall be vented to atmospheric pressure.
  10. Tank shall be capable of storing products identified in the manufacturer’s current standard limited warranty.
  11.  Materials
  12. Tank shall be manufactured with 100% resin and glass-fiber reinforcement. No sand fillers.
  13.  Tank Dimensions (Refer to Xerxes literature on gallonage.)
  14. Tank shall have nominal capacity of _____ gallons.
  15. Tank shall have nominal outside diameter of _____ feet.
  16.  Interstitial Space
  17. Tank shall have a space between the primary and secondary walls to allow for the free flow and containment of leaked product from the primary tank. The space also allows the insertion of a monitoring device through a monitoring fitting.

2 Accessories

  1.  Optional Anchor Straps
  2. Straps shall be FRP anchor straps as supplied by tank manufacturer.
  3. Number and location of straps shall be specified in current literature by tank manufacturer.
  4.  Manways
  5. All manways shall be flanged and 22″ I.D., complete with UL-listed gaskets, bolts and covers. (30″ and 36″ I.D. manways are also available on certain larger tanks.)
  6. Location is shown on tank drawings.
  7. Optional manway extensions shall be FRP and 24″ long.
  8.  Optional Fill Tubes
  9. Fill tubes shall be FRP, 4″-diameter, with a 6″ x 4″ double-tapped reducer bushing, and include a 6″ NPT fitting. Tubes shall terminate a minimum of 4″ from the bottom of tank (a minimum of 6″ for a 12′-diameter tank).
  10.  Gauge Plates
  11. Gauge plates shall be installed under each service fitting and manway opening.
  12.  Optional Heating Coils
  13. Optional heating coils shall be installed in a separate 22″ manway and shall be as supplied by tank manufacturer.
  14.  Optional Ladders
  15. Ladders shall be the standard ladder as supplied by tank manufacturer (aluminum, carbon steel or fiberglass).
  16.  NPT Threaded Fittings
  17. All standard threaded fittings shall be half-couplings and shall be 4″- or 6″- diameter. Reducers are to be used for smaller sizes where shown and provided by contractor.
  18. Strength – NPT fittings shall withstand a minimum of 150 foot-pounds of torque and 1,000 foot-pounds of bending, both with a 2:1 safety factor.
  19.  Monitor Fittings
  20. Each monitor fitting shall consist of a 4″ NPT fitting on the tank. Tanks with a hydrostatic monitoring system do not have a monitor fitting.

Part III: Testing and Installation

3.01 Testing

  1. Tank shall be tested according to the Xerxes Installation Manual and Operating Guidelines for Single-Wall and Double-Wall Fiberglass Underground Storage Tanks in effect at time of installation.

3.02 Installation

  1.  Tank shall be installed according to the Xerxes Installation Manual and Operating Guidelines for Single-Wall and Double-Wall Fiberglass Underground Storage Tanks in effect at time of installation.
  2.  Contractor shall be trained by the tank manufacturer, the state or other approved agency.

Part IV: Warranty

4.01 Warranty

  1.  Warranty shall be manufacturer’s limited warranty for double-wall underground petroleum tanks in effect at time of purchase.

Frp Poly Pressure Vessels

FRP Poly Pressure Vessels

Corrosion Resistance

  • Constructed of high-performance Composite and fiberglass materials.
  • All Tanks and Process Systems tanks are 100% corrosion resistant.
  • Uniform inner shell available in a variety of thermoplastic materials including polyethylene, polypropylene, PVDF, ECTFE (Halar), and many other high-performance materials.
  • Wall thickness of inner shell ranges from .150″ to .300″ depending on tank diameter.

Sizes and Features

  • No other manufacturer of nonmetal tanks offers a range of sizes as extensive as ours.
  • Range of diameters up to 84″ and specified lengths up to 144″ according to your job requirements.
  • Features such as openings and connections are available. Flanged top, bottom and side holes; sight glass; manholes of 16″ (406.4 mm) diameter; ASME certification; and other customized features can be matched to your requirements. Just tell us what you need.
  • High-strength, lightweight construction.
  • Same high strength of equivalent steel tanks, but about 60% lighter.
  • Composite materials outperform steel in a wide range of critical performance tests.
  • Standard operating pressure is 150 psi (10.5 Bar) at an operating temperature of 150° F (65° C). (Higher temperatures are available.)
  • Capacities of up to 4,000 gallons (15,000 liters).

Lower Installation and Life Cycle Cost

  • Light tank weight means easier handling during installation; lower cost for labor and rigging.
  • No painting, linings or coatings that can deteriorate during the operating life of a steel tank.
  • Costs of maintenance and downtime are reduced.
  • Freight and fuel costs�which can be significant for mobile-based tank systems�reduced.

Five-year Performance Warranty

  • The strongest warranty and customer support in the business.
  • Experience of our engineering and manufacturing staff assures that you’re buying the highest quality tanks you can buy.
  • Quality certification and approval from the following international agencies: ASME, NSF, DIN and TUV.

Availability

  • Quick delivery. For tanks with standard diameters and features, we ship to you in just TWO WEEKS

Global Leaders in Composite

Pressure Vessel Technology

  • The non-corrosive, cost-effective
  • solution for commercial/industrial
  • water treatment and storage

Product Sizes ( Diameter by Height )

  • 18 x 65 4″T 150/10.34 66.25/1682.0 65.00/1651.0 18.65/473.8 64/242.0 SMC 67/30.4
  • 18 x 65 4″TB 150/10.34 73.13/1857.5 65.63/1667.0 18.65/473.8 64/242.0 SMC EXT 67/30.4
  • 21 x 62 4″T 150/10.34 67.13/1705.0 63.50/1612.9 22.00/558.8 84/318.0 SMC 95/43.1
  • 21 x 62 4″TB 150/10.34 72.75/1847.9 63.50/1612.9 21.75/552.5 84/318.0 SMC EXT 95/43.1
  • 24 x 72 4″T 150/10.34 74.66/1896.3 70.60/1793.2 24.25/616.0 118/446.7 SMC 109/49.4
  • 24 x 72 4″TB 150/10.34 80.42/2042.7 70.30/1785.6 24.60/624.8 119/450.5 SMC EXT 124/56.2
  • 24 x 72 6″TBF 150/10.34 88.50/2247.9 74.50/1892.3 24.20/614.7 119/450.5 TRIPOD 137/62.1
  • 30 x 60 6″TF 150/10.34 71.63/1819.4 64.34/1634.2 30.20/767.0 151/571.6 SMC EXT 185/83.9
  • 30 x 60 6″TBF 150/10.34 82.50/2095.5 68.50/1739.9 30.20/767.0 151/571.6 TRIPOD 185/83.9
  • 30 x 72 4″TB 150/10.34 78.90/2004.1 70.40/1788.2 30.07/763.8 187/707.9 SMC EXT 198/89.8
  • 30 x 72 6″TBF 150/10.34 88.90/2258.1 74.90/1902.5 30.20/767.1 187/707.9 TRIPOD 211/95.7
  • 36 x 72 4″TB 150/10.34 80.50/2004.7 70.50/1790.7 36.00/914.4 264/999.3 SMC EXT 285/129.3
  • 36 x 72 6″TBF 150/10.34 90.39/2295.9 76.14/1933.9 36.12/917.4 264/999.3 TRIPOD 285/129.3
  • 42 x 72 6″TF 150/10.34 72.52/1842.0 71.14/1807.0 42.25/1073.2 345/1306.0 SMC LOW 370/168.0
  • 42 x 72 6″TBF 150/10.34 90.12/2289.0 73.00/1854.2 42.25/1073.2 345/1306.0 TRIPOD 400/181.0
  • 48 x 72 6″TF 150/10.34 81.54/2071.2 75.16/1909.1 48.25/1225.6 463/1753.0 SMC LOW 494/224.0
  • 48 x 72 6″TBF 150/10.34 92.90/2359.7 76.90/1953.3 48.25/1225.6 463/1753.0 TRIPOD 494/224.0
  • 63 x 67 6″TBF 150/10.34 81.41/2067.8 67.10/1704.3 64.00/1625.7 600/2271.0 TRIPOD 680/308.0
  • 63 x 67 16″TMY, 6″BF 150/10.34 82.24/2088.9 67.80/1722.1 64.00/1625.7 600/2271.0 TRIPOD 680/308.0
  • 63 x 86 6″TBF 150/10.34 98.54/2502.9 84.10/2136.1 64.00/1625.7 900/3407.0 TRIPOD 950/431.0
  • 63 x 86 16″TMY, 6″BF 150/10.34 98.94/2513.1 84.50/2146.3 64.00/1625.7 900/3407.0 TRIPOD 950/431.0
  • 63 x 116 16″TMY, 6″BF 150/10.34 130.44/3313.2 116.00/2946.4 64.00/1625.7 1250/4732.0 TRIPOD 1190/540.0
  • 63 x 144 16″TMY, 6″BF 150/10.34 160.18/4068.6 145.50/3695.7 64.50/1638.3 1600/6057.0 TRIPOD 1398/634.0

1 Height Tolerance is +/- 1.00in/ 25.4 mm

2 Diameter Tolerence is +/- .50in/ 12.7 mm

3 Product Weight � Contact customer service for shipping weight

Note: ASME Code available on flanged tanks 18″ to 48″ in diameter
